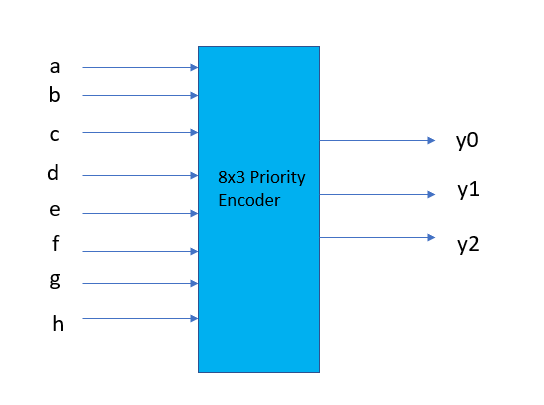

Different ways to design 8X3 Priority Encoder

-










module Priority_8_3 (y2,y1,y0,a,b,c,d,e,f,g,h);

input a,b,c,d,e,f,g,h;

output reg y2,y1,y0;


`ifdef method1

always @*

begin

    case ({a,b,c,d,e,f,g,h})

8'b11111111: {y2,y1,y0} =3'b111;

8'b11111110: {y2,y1,y0} =3'b111;

8'b11111101: {y2,y1,y0} =3'b111;

8'b11111100: {y2,y1,y0} =3'b111;

8'b11111011: {y2,y1,y0} =3'b111;

8'b11111010: {y2,y1,y0} =3'b111;

8'b11111001: {y2,y1,y0} =3'b111;

8'b11111000: {y2,y1,y0} =3'b111;

8'b11110111: {y2,y1,y0} =3'b111;

8'b11110110: {y2,y1,y0} =3'b111;

8'b11110101: {y2,y1,y0} =3'b111;

8'b11110100: {y2,y1,y0} =3'b111;

8'b11110011: {y2,y1,y0} =3'b111;

8'b11110010: {y2,y1,y0} =3'b111;

8'b11110001: {y2,y1,y0} =3'b111;

8'b11110000: {y2,y1,y0} =3'b111;

8'b11101111: {y2,y1,y0} =3'b111;

8'b11101110: {y2,y1,y0} =3'b111;

8'b11101101: {y2,y1,y0} =3'b111;

8'b11101100: {y2,y1,y0} =3'b111;

8'b11101011: {y2,y1,y0} =3'b111;

8'b11101010: {y2,y1,y0} =3'b111;

8'b11101001: {y2,y1,y0} =3'b111;

8'b11101000: {y2,y1,y0} =3'b111;

8'b11100111: {y2,y1,y0} =3'b111;

8'b11100110: {y2,y1,y0} =3'b111;

8'b11100101: {y2,y1,y0} =3'b111;

8'b11100100: {y2,y1,y0} =3'b111;

8'b11100011: {y2,y1,y0} =3'b111;

8'b11100010: {y2,y1,y0} =3'b111;

8'b11100001: {y2,y1,y0} =3'b111;

8'b11100000: {y2,y1,y0} =3'b111;

8'b11011111: {y2,y1,y0} =3'b111;

8'b11011110: {y2,y1,y0} =3'b111;

8'b11011101: {y2,y1,y0} =3'b111;

8'b11011100: {y2,y1,y0} =3'b111;

8'b11011011: {y2,y1,y0} =3'b111;

8'b11011010: {y2,y1,y0} =3'b111;

8'b11011001: {y2,y1,y0} =3'b111;

8'b11011000: {y2,y1,y0} =3'b111;

8'b11010111: {y2,y1,y0} =3'b111;

8'b11010110: {y2,y1,y0} =3'b111;

8'b11010101: {y2,y1,y0} =3'b111;

8'b11010100: {y2,y1,y0} =3'b111;

8'b11010011: {y2,y1,y0} =3'b111;

8'b11010010: {y2,y1,y0} =3'b111;

8'b11010001: {y2,y1,y0} =3'b111;

8'b11010000: {y2,y1,y0} =3'b111;

8'b11001111: {y2,y1,y0} =3'b111;

8'b11001110: {y2,y1,y0} =3'b111;

8'b11001101: {y2,y1,y0} =3'b111;

8'b11001100: {y2,y1,y0} =3'b111;

8'b11001011: {y2,y1,y0} =3'b111;

8'b11001010: {y2,y1,y0} =3'b111;

8'b11001001: {y2,y1,y0} =3'b111;

8'b11001000: {y2,y1,y0} =3'b111;

8'b11000111: {y2,y1,y0} =3'b111;

8'b11000110: {y2,y1,y0} =3'b111;

8'b11000101: {y2,y1,y0} =3'b111;

8'b11000100: {y2,y1,y0} =3'b111;

8'b11000011: {y2,y1,y0} =3'b111;

8'b11000010: {y2,y1,y0} =3'b111;

8'b11000001: {y2,y1,y0} =3'b111;

8'b11000000: {y2,y1,y0} =3'b111;

8'b10111111: {y2,y1,y0} =3'b111;

8'b10111110: {y2,y1,y0} =3'b111;

8'b10111101: {y2,y1,y0} =3'b111;

8'b10111100: {y2,y1,y0} =3'b111;

8'b10111011: {y2,y1,y0} =3'b111;

8'b10111010: {y2,y1,y0} =3'b111;

8'b10111001: {y2,y1,y0} =3'b111;

8'b10111000: {y2,y1,y0} =3'b111;

8'b10110111: {y2,y1,y0} =3'b111;

8'b10110110: {y2,y1,y0} =3'b111;

8'b10110101: {y2,y1,y0} =3'b111;

8'b10110100: {y2,y1,y0} =3'b111;

8'b10110011: {y2,y1,y0} =3'b111;

8'b10110010: {y2,y1,y0} =3'b111;

8'b10110001: {y2,y1,y0} =3'b111;

8'b10110000: {y2,y1,y0} =3'b111;

8'b10101111: {y2,y1,y0} =3'b111;

8'b10101110: {y2,y1,y0} =3'b111;

8'b10101101: {y2,y1,y0} =3'b111;

8'b10101100: {y2,y1,y0} =3'b111;

8'b10101011: {y2,y1,y0} =3'b111;

8'b10101010: {y2,y1,y0} =3'b111;

8'b10101001: {y2,y1,y0} =3'b111;

8'b10101000: {y2,y1,y0} =3'b111;

8'b10100111: {y2,y1,y0} =3'b111;

8'b10100110: {y2,y1,y0} =3'b111;

8'b10100101: {y2,y1,y0} =3'b111;

8'b10100100: {y2,y1,y0} =3'b111;

8'b10100011: {y2,y1,y0} =3'b111;

8'b10100010: {y2,y1,y0} =3'b111;

8'b10100001: {y2,y1,y0} =3'b111;

8'b10100000: {y2,y1,y0} =3'b111;

8'b10011111: {y2,y1,y0} =3'b111;

8'b10011110: {y2,y1,y0} =3'b111;

8'b10011101: {y2,y1,y0} =3'b111;

8'b10011100: {y2,y1,y0} =3'b111;

8'b10011011: {y2,y1,y0} =3'b111;

8'b10011010: {y2,y1,y0} =3'b111;

8'b10011001: {y2,y1,y0} =3'b111;

8'b10011000: {y2,y1,y0} =3'b111;

8'b10010111: {y2,y1,y0} =3'b111;

8'b10010110: {y2,y1,y0} =3'b111;

8'b10010101: {y2,y1,y0} =3'b111;

8'b10010100: {y2,y1,y0} =3'b111;

8'b10010011: {y2,y1,y0} =3'b111;

8'b10010010: {y2,y1,y0} =3'b111;

8'b10010001: {y2,y1,y0} =3'b111;

8'b10010000: {y2,y1,y0} =3'b111;

8'b10001111: {y2,y1,y0} =3'b111;

8'b10001110: {y2,y1,y0} =3'b111;

8'b10001101: {y2,y1,y0} =3'b111;

8'b10001100: {y2,y1,y0} =3'b111;

8'b10001011: {y2,y1,y0} =3'b111;

8'b10001010: {y2,y1,y0} =3'b111;

8'b10001001: {y2,y1,y0} =3'b111;

8'b10001000: {y2,y1,y0} =3'b111;

8'b10000111: {y2,y1,y0} =3'b111;

8'b10000110: {y2,y1,y0} =3'b111;

8'b10000101: {y2,y1,y0} =3'b111;

8'b10000100: {y2,y1,y0} =3'b111;

8'b10000011: {y2,y1,y0} =3'b111;

8'b10000010: {y2,y1,y0} =3'b111;

8'b10000001: {y2,y1,y0} =3'b111;

8'b10000000: {y2,y1,y0} =3'b111;

8'b01111111: {y2,y1,y0} =3'b110;

8'b01111110: {y2,y1,y0} =3'b110;

8'b01111101: {y2,y1,y0} =3'b110;

8'b01111100: {y2,y1,y0} =3'b110;

8'b01111011: {y2,y1,y0} =3'b110;

8'b01111010: {y2,y1,y0} =3'b110;

8'b01111001: {y2,y1,y0} =3'b110;

8'b01111000: {y2,y1,y0} =3'b110;

8'b01110111: {y2,y1,y0} =3'b110;

8'b01110110: {y2,y1,y0} =3'b110;

8'b01110101: {y2,y1,y0} =3'b110;

8'b01110100: {y2,y1,y0} =3'b110;

8'b01110011: {y2,y1,y0} =3'b110;

8'b01110010: {y2,y1,y0} =3'b110;

8'b01110001: {y2,y1,y0} =3'b110;

8'b01110000: {y2,y1,y0} =3'b110;

8'b01101111: {y2,y1,y0} =3'b110;

8'b01101110: {y2,y1,y0} =3'b110;

8'b01101101: {y2,y1,y0} =3'b110;

8'b01101100: {y2,y1,y0} =3'b110;

8'b01101011: {y2,y1,y0} =3'b110;

8'b01101010: {y2,y1,y0} =3'b110;

8'b01101001: {y2,y1,y0} =3'b110;

8'b01101000: {y2,y1,y0} =3'b110;

8'b01100111: {y2,y1,y0} =3'b110;

8'b01100110: {y2,y1,y0} =3'b110;

8'b01100101: {y2,y1,y0} =3'b110;

8'b01100100: {y2,y1,y0} =3'b110;

8'b01100011: {y2,y1,y0} =3'b110;

8'b01100010: {y2,y1,y0} =3'b110;

8'b01100001: {y2,y1,y0} =3'b110;

8'b01100000: {y2,y1,y0} =3'b110;

8'b01011111: {y2,y1,y0} =3'b110;

8'b01011110: {y2,y1,y0} =3'b110;

8'b01011101: {y2,y1,y0} =3'b110;

8'b01011100: {y2,y1,y0} =3'b110;

8'b01011011: {y2,y1,y0} =3'b110;

8'b01011010: {y2,y1,y0} =3'b110;

8'b01011001: {y2,y1,y0} =3'b110;

8'b01011000: {y2,y1,y0} =3'b110;

8'b01010111: {y2,y1,y0} =3'b110;

8'b01010110: {y2,y1,y0} =3'b110;

8'b01010101: {y2,y1,y0} =3'b110;

8'b01010100: {y2,y1,y0} =3'b110;

8'b01010011: {y2,y1,y0} =3'b110;

8'b01010010: {y2,y1,y0} =3'b110;

8'b01010001: {y2,y1,y0} =3'b110;

8'b01010000: {y2,y1,y0} =3'b110;

8'b01001111: {y2,y1,y0} =3'b110;

8'b01001110: {y2,y1,y0} =3'b110;

8'b01001101: {y2,y1,y0} =3'b110;

8'b01001100: {y2,y1,y0} =3'b110;

8'b01001011: {y2,y1,y0} =3'b110;

8'b01001010: {y2,y1,y0} =3'b110;

8'b01001001: {y2,y1,y0} =3'b110;

8'b01001000: {y2,y1,y0} =3'b110;

8'b01000111: {y2,y1,y0} =3'b110;

8'b01000110: {y2,y1,y0} =3'b110;

8'b01000101: {y2,y1,y0} =3'b110;

8'b01000100: {y2,y1,y0} =3'b110;

8'b01000011: {y2,y1,y0} =3'b110;

8'b01000010: {y2,y1,y0} =3'b110;

8'b01000001: {y2,y1,y0} =3'b110;

8'b01000000: {y2,y1,y0} =3'b110;

8'b00111111: {y2,y1,y0} =3'b101;

8'b00111110: {y2,y1,y0} =3'b101;

8'b00111101: {y2,y1,y0} =3'b101;

8'b00111100: {y2,y1,y0} =3'b101;

8'b00111011: {y2,y1,y0} =3'b101;

8'b00111010: {y2,y1,y0} =3'b101;

8'b00111001: {y2,y1,y0} =3'b101;

8'b00111000: {y2,y1,y0} =3'b101;

8'b00110111: {y2,y1,y0} =3'b101;

8'b00110110: {y2,y1,y0} =3'b101;

8'b00110101: {y2,y1,y0} =3'b101;

8'b00110100: {y2,y1,y0} =3'b101;

8'b00110011: {y2,y1,y0} =3'b101;

8'b00110010: {y2,y1,y0} =3'b101;

8'b00110001: {y2,y1,y0} =3'b101;

8'b00110000: {y2,y1,y0} =3'b101;

8'b00101111: {y2,y1,y0} =3'b101;

8'b00101110: {y2,y1,y0} =3'b101;

8'b00101101: {y2,y1,y0} =3'b101;

8'b00101100: {y2,y1,y0} =3'b101;

8'b00101011: {y2,y1,y0} =3'b101;

8'b00101010: {y2,y1,y0} =3'b101;

8'b00101001: {y2,y1,y0} =3'b101;

8'b00101000: {y2,y1,y0} =3'b101;

8'b00100111: {y2,y1,y0} =3'b101;

8'b00100110: {y2,y1,y0} =3'b101;

8'b00100101: {y2,y1,y0} =3'b101;

8'b00100100: {y2,y1,y0} =3'b101;

8'b00100011: {y2,y1,y0} =3'b101;

8'b00100010: {y2,y1,y0} =3'b101;

8'b00100001: {y2,y1,y0} =3'b101;

8'b00100000: {y2,y1,y0} =3'b101;

8'b00011111: {y2,y1,y0} =3'b100;

8'b00011110: {y2,y1,y0} =3'b100;

8'b00011101: {y2,y1,y0} =3'b100;

8'b00011100: {y2,y1,y0} =3'b100;

8'b00011011: {y2,y1,y0} =3'b100;

8'b00011010: {y2,y1,y0} =3'b100;

8'b00011001: {y2,y1,y0} =3'b100;

8'b00011000: {y2,y1,y0} =3'b100;

8'b00010111: {y2,y1,y0} =3'b100;

8'b00010110: {y2,y1,y0} =3'b100;

8'b00010101: {y2,y1,y0} =3'b100;

8'b00010100: {y2,y1,y0} =3'b100;

8'b00010011: {y2,y1,y0} =3'b100;

8'b00010010: {y2,y1,y0} =3'b100;

8'b00010001: {y2,y1,y0} =3'b100;

8'b00010000: {y2,y1,y0} =3'b100;

8'b00001111: {y2,y1,y0} =3'b011;

8'b00001110: {y2,y1,y0} =3'b011;

8'b00001101: {y2,y1,y0} =3'b011;

8'b00001100: {y2,y1,y0} =3'b011;

8'b00001011: {y2,y1,y0} =3'b011;

8'b00001010: {y2,y1,y0} =3'b011;

8'b00001001: {y2,y1,y0} =3'b011;

8'b00001000: {y2,y1,y0} =3'b011;

8'b00000111: {y2,y1,y0} =3'b010;

8'b00000110: {y2,y1,y0} =3'b010;

8'b00000101: {y2,y1,y0} =3'b010;

8'b00000100: {y2,y1,y0} =3'b010;

8'b00000011: {y2,y1,y0} =3'b001;

8'b00000010: {y2,y1,y0} =3'b001;

8'b00000001: {y2,y1,y0} =3'b000;

8'b00000000: {y2,y1,y0} =3'b111;

endcase

end


`endif



`ifdef method2

always @*

begin

   casex ({a,b,c,d,e,f,g,h})

     8'b1xxxxxxx :{y2,y1,y0}= 3'b111;

8'b01xxxxxx :{y2,y1,y0}= 3'b110;

8'b001xxxxx :{y2,y1,y0}= 3'b101;

8'b0001xxxx :{y2,y1,y0}= 3'b100;

8'b00001xxx :{y2,y1,y0}= 3'b011;

8'b000001xx :{y2,y1,y0}= 3'b010;

8'b0000001x :{y2,y1,y0}= 3'b001;

8'b00000001 :{y2,y1,y0}= 3'b000;

8'b00000000 :{y2,y1,y0}= 3'b111;



   endcase

 end

 `endif



`ifdef method3

always @*

begin

case (1)

a:{y2,y1,y0}= 3'b111;

b:{y2,y1,y0}= 3'b110;

c:{y2,y1,y0}= 3'b101;

d:{y2,y1,y0}= 3'b100;

e:{y2,y1,y0}= 3'b011;

f:{y2,y1,y0}= 3'b010;

g:{y2,y1,y0}= 3'b001;

h:{y2,y1,y0}= 3'b000;

default : {y2,y1,y0}= 3'b111;

endcase

end

`endif

endmodule
