Vending machine Code With Display Options
Vending machine Top Module :
module vending_machine_top (input clk,
input rst,
input coin_valid,
input [2:0] coin,
output cup_f,
output [375:0] Display_out,
output [5:0] bal
);
wire [2:0] w_addr;
vending_machine V1 ( .clk (clk),
.rst (rst),
.coin_valid (coin_valid),
.coin (coin),
.cup_f (cup_f),
.addr (w_addr),
.bal (bal)
);
Display v2 ( .Display_out (Display_out) ,
.addr (w_addr),
.clk (clk)
);
endmodule
Display Module :
module Display(output reg [375:0]Display_out ,input [2:0] addr,clk);
always@(posedge clk)
begin
case(addr)
3'd0 : Display_out<="1.Coffee is 20/- 2.Tea is 15/- 3.Cow milk is 25/-";
3'd1 : Display_out<="Coin is invalid";
3 'd2 : Display_out<="Coffee is filled Please collect coffee";
3'd3 : Display_out<="Please wait coffee is filling";
3'd4 : Display_out<="Tea is filled Please collect Tea";
3 'd5 : Display_out<="Please wait Tea is filling";
3 'd6 : Display_out<="Milk is filled Please collect Milk ";
3'd7 : Display_out<="Please wait Milk is filling";
endcase
end
endmodule
vending machine Module:
module vending_machine( input clk,
input rst,
input coin_valid,
input [2:0] coin,
output reg cup_f, // Cup filled Indication
output reg [2:0] addr,
output reg [5:0] bal
);
integer total_amount_collected;
parameter coin_check = 3'd0;
parameter coffee_filling = 3'd1;
parameter coffee_filled = 3'd2;
parameter Tea_filling = 3'd3;
parameter Tea_filled = 3'd4;
parameter Milk_filling = 3'd5;
parameter Milk_filled = 3'd6;
reg [2:0] state,next_state;
reg cup_f_next;
always @(posedge clk)
begin
if (rst)
begin
state<= coin_check;
cup_f<=0;
end
else
begin
state<= next_state;
cup_f<=cup_f_next;
end
end
always @(state,coin,coin_valid)
begin
total_amount_collected = 0;
cup_f_next = 0;
addr = 0;
if (coin_valid) begin
case (state)
coin_check:
begin
if (coin==2'b00)
begin
next_state = coin_check;
addr =3'd1;
end
else if (coin==2'b01)
begin
next_state = coffee_filling;
total_amount_collected = 20;
end
else if (coin==2'b10)
begin
next_state =Tea_filling;
total_amount_collected =15;
end
else if (coin==2'b11)
begin
next_state = Milk_filling;
total_amount_collected = 25;
end
end
coffee_filling:
begin
addr =3'd3;
next_state = coffee_filled ;
end
coffee_filled :
begin
cup_f_next = 1;
addr =3'd2;
next_state = coin_check ;
end
Tea_filling :
begin
addr =3'd5;
next_state = Tea_filled ;
end
Tea_filled :
begin
cup_f_next = 1;
addr =3'd4;
next_state = coin_check ;
end
Milk_filling : begin
addr =3'd7;
next_state = Milk_filled;
end
Milk_filled :
begin
cup_f_next = 1;
addr =3'd6;
next_state = coin_check ;
end
default : next_state = coin_check;
endcase // case (state)
end
else
addr=3'd0;
end // always @ (state,next_state)
always@(posedge clk )
begin
if(rst)
bal = 0;
else
bal = bal+total_amount_collected;
end
endmodule

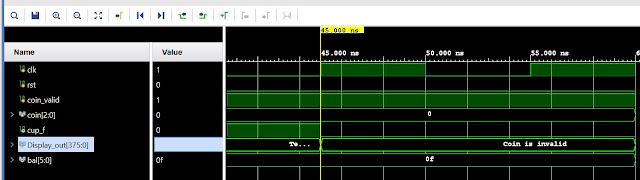

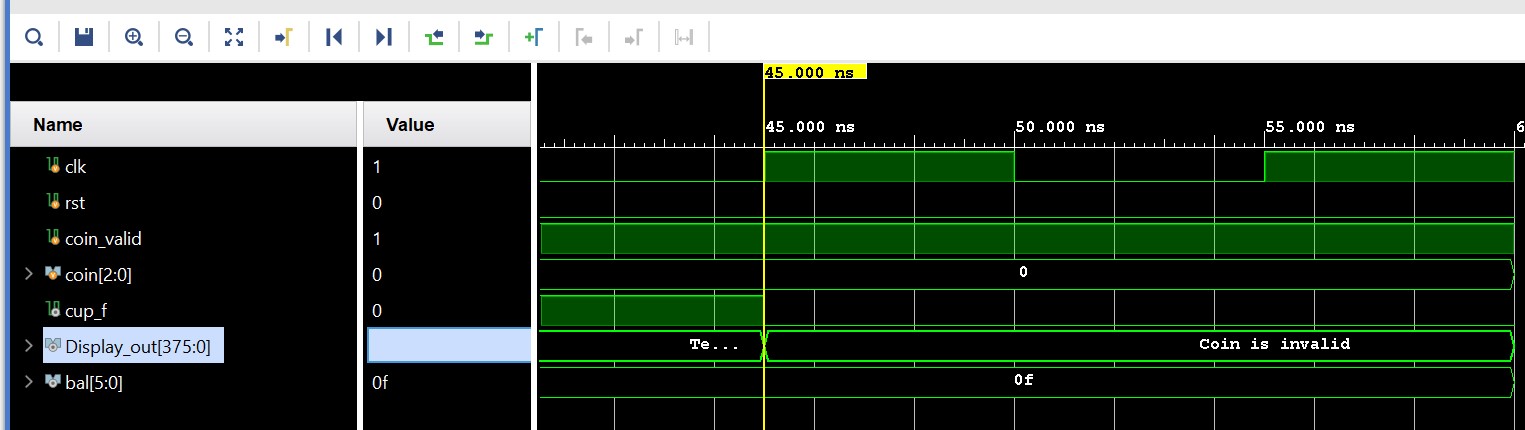

Simulation Results
